DIGIC X Image Processor

The EOS R5 camera is the first Canon EOS camera – in the Mirrorless series camera line - to feature a powerful DIGIC X Image Processor, which helps to enhance fine detail in your image.



ISO range of 100-51200; Expandable to 102400*1

Delivering high standard and expanded ISOs (for still images), and a score of options to help enhance shooting in varied and fast-changing lighting situations, the EOS R5 camera can shoot at expanded sensitivities down to ISO 50 (L) and up to 102400 (H).

Up to 12 fps with Mechanical Shutter

Delivering incredible performance at speeds of up to 12 fps, the EOS R5 camera can capture the split-second details between a subject’s movements. This is ideal for dynamic action photos such as athletes, animals or vehicles in motion.

Up to 20 fps Electronic (Silent) Shutter

Especially helpful for wildlife photography, journalism and situations where photographers need to remain discrete, the EOS R5 camera features a selectable electronic (silent) shutter mode, and can capture images at up to 20 fps. With a fast AF/AE system, DIGIC X image Processor and high-speed recording with new Dual CFexpress card slots, the EOS R5 helps ensure that camera operations are performed quickly and precisely.

High-speed Focusing with Dual Pixel CMOS AF

The EOS R5 camera’s highly responsive Dual Pixel CMOS AF system features an incredible 1,053 Automatic AF zones that can be designated as auto-focus focal points (when Face + Tracking priority AF is selected). This ensures higher-precision Eye Detection AF, or allows for you to focus on the desired AF point. Fast action can be captured and focus can be maintained with speed, accuracy and ease.

AF Area Coverage of Approx. 100% x 100%^2

The EOS R5 camera features an expansive focus area of approx. 100% horizontal and 100% vertical^2 when working with select RF and EF lenses. With older EF lenses, or with Extender types I and II, the EOS R5 focuses on approx. 80% horizontally and 80% vertically of the image. This means fast and impressive focusing even when composing your subject far from the center of the frame.

^2 When taking still photos. Actual coverage varies depending on the lens in use. Focus area will not be covered with the following RF lenses: RF600mm F11 IS STM, RF800mm F11 IS STM.

EV -6^3 Low-light Autofocus

Amazing for nighttime photography or in very low light settings, the EOS R5 camera’s brilliant AF can operate in light as dim as a light rating of EV -6^3 where other AF systems may fail or search. Phenomenal AF is achieved even when using lenses with high F numbers. This ultra-sensitive AF works together with the EOS R5’s EVF to clearly capture subjects even when light is limited. Combined with the EOS R5 camera’s remarkable low-light AF performance, still and video shooting is possible even in dark situations in a variety of places and occasions.

^3 Camera settings: Center AF point, normal temperature, One-shot AF, ISO 100

Head and Eye Detection

The EOS R5 camera brings head and eye detection to a new level. Even in situations where a camera may struggle to detect a subject, the EOS R5 camera can locate and a person’s head or eye when people detection is set, allowing ease and accuracy when capturing videos or still images, or while in Live View mode.



Animal Detection*2

For the first time in a Canon Mirrorless camera, animal detection is now possible. Developed using deep learning technology, the EOS R5 camera can effectively track the whole body, face, or eye of cats, dogs, or birds for speed and precision – regardless of the animal’s size, posture, or orientation of the face.

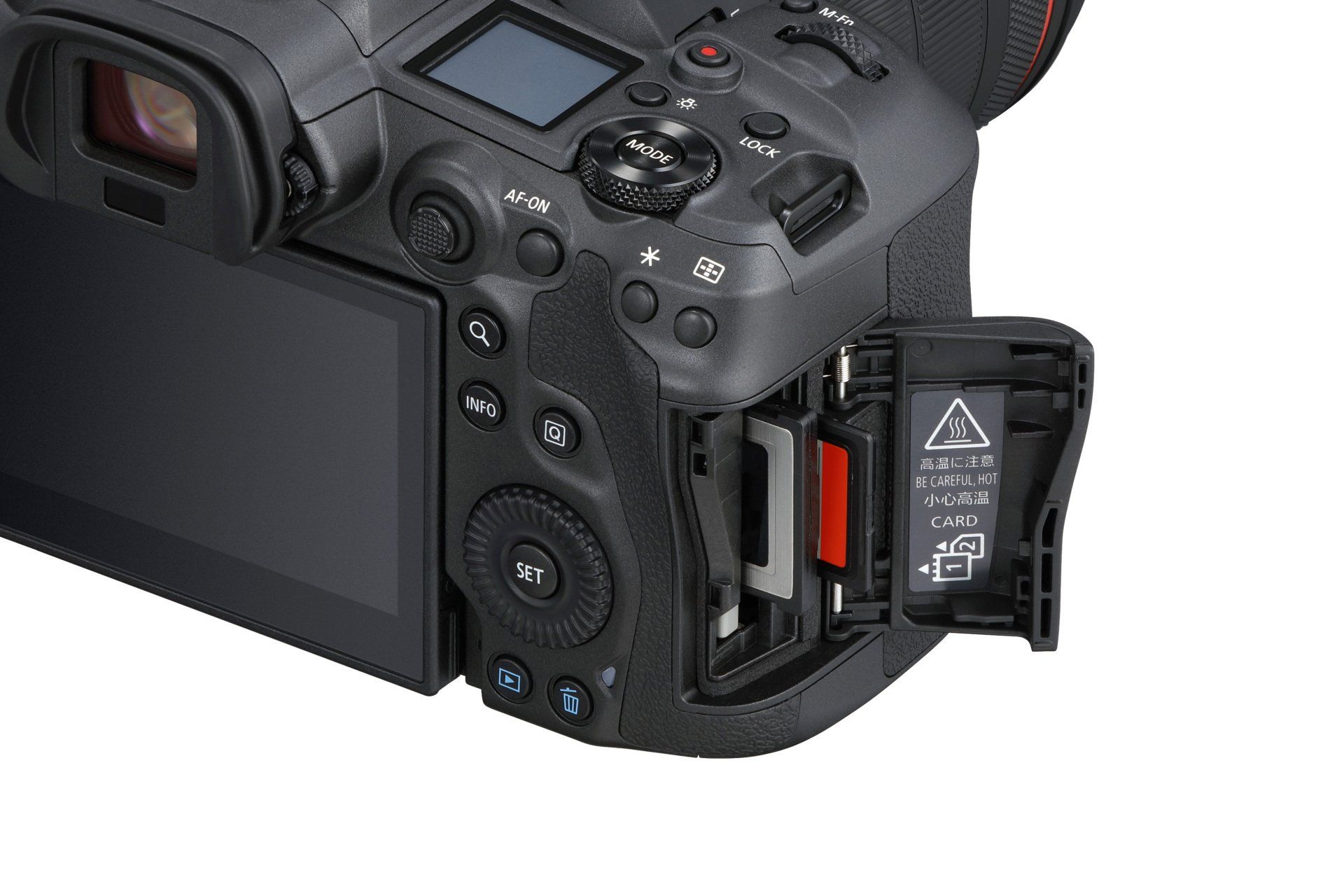

Dual Card Slots for CFexpress** and UHS-II SD Memory Cards*** Memory Cards

Whether you are shooting photos every day, or are recording 8K videos, the EOS R5 camera can capture an incredible amount of images through its super high-speed CFexpress dual card slots. Plus a UHS-II SD*** card slot is also provided at your disposal.

0.5-type OLED EVF with Approx. 5.76 Million Dots

The EOS R5 camera features a high-precision 0.5-inch OLED (Organic Light-Emitting Diode) EVF with approx. 5.76 million dots and a 23mm eyepoint. Displaying a bright image and extensive shooting information that rotates with the camera. The EOS R5’s EVF supports a 120 fps refresh rate^1 and has been created to provide a bright, sharp and colorful 100% view of the subject at hand, displaying a crisp and vivid image with minimal aberration or distortion.

Vari-angle Touchscreen LCD

The EOS R5 camera features a 3.15-inch, 2.1 Megapixel Clear View LCD II Vari-angle Touchscreen LCD. Its extensive flexibility makes it easy to compose and shoot from virtually any angle, making selfies simple and enabling the LCD to fold away when not in use. The brightness of the EVF and the LCD monitor can even be adjusted individually. Touchscreen features include settings, review and even AF point selection.

Dot-matrix LCD Panel

An LCD panel on the top of the camera features a dot-matrix display that shows information on the camera’s status, recording mode and more. It gives real-time setting information both when the camera is in use or on standby, and can be inverted from black to white to suit viewing preferences or the ambient light source.



2.4/5Ghz Built-in Wi-Fi®^ Capability

In addition to the traditional 2.4 GHz Wi-Fi®^, the EOS R5 camera now supports 5 GHz Wi-Fi®^ communication – a first for EOS mirrorless cameras. Users can easily perform high-speed FTP data transfer between the camera and using the free Canon Camera Connect app. Simply connect to the Camera Connect app where you can browse, or download images to your smart device, then share and upload from the device directly to various social media sites and web services. For professional photographers using the EOS R5 camera, the built-in Wi-Fi® is the ideal feature that is needed for quick wireless connectivity.

Bluetooth®^^ Capability

Bluetooth®^^ connectivity offers continuous connection, and allows the EOS R5 camera to automatically connect to a smart device that is paired with the Canon Camera Connect app. This allows a number of functions from easy image transfer to remote shooting, to adding GPS*3 information to your photos and videos and more.

*3 In certain countries and regions, the use of GPS may be restricted. Therefore, be sure to use GPS in accordance with the laws and regulations of your country or region. Be particularly careful when traveling outside your home country. As a signal is received from GPS satellites, take sufficient measures when using in locations where the use of electronics is regulated.

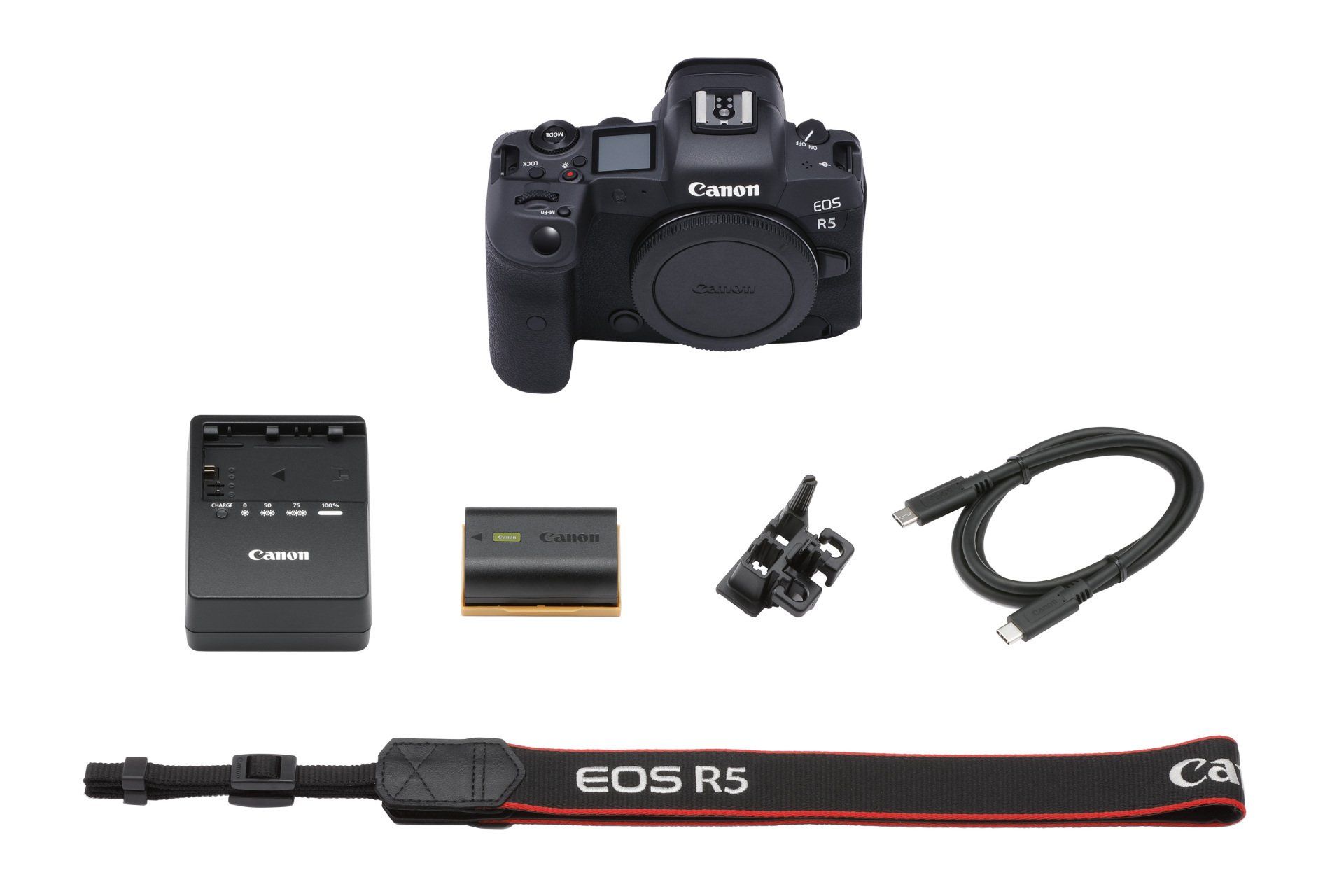

High-Capacity Battery Pack LP-E6NH

For increased power and the convenience of compatibility among multiple cameras, the EOS R5 camera uses Battery Packs LP-E6NH, the same batteries used on the EOS R camera and others. Especially helpful for photographers with multiple EOS cameras, the Battery Pack LP-E6NH is a robust, long-lasting battery that helps deliver power, shot after shot.



Magnesium Body

Comfortable and solid in the hand, the EOS R5 camera features a rigid yet lightweight magnesium alloy chassis that enhances body durability while shielding the camera from electromagnetic radiation and heat. It also has a tempered front panel for internal rigidity.

Shutter Durability

The EOS R5 camera has a durability rated at approx. 500,000 cycles and full-frame focal-plane shutter that offers approx. 12 shots/sec.



Dust- & Water-resistant Sealing

The EOS R5 camera is designed for use in a variety of weather conditions. Sealing materials are used in critical areas like the buttons, terminal covers, the battery compartment and the card slot cover. Precise design and construction help to minimize accidental penetration of dust and moisture in the rest of the camera body. Combined with an RF lens, or any other weather-sealed EF/EF-S lens, the EOS R5 camera proves to be a reliable partner in virtually any climate.
